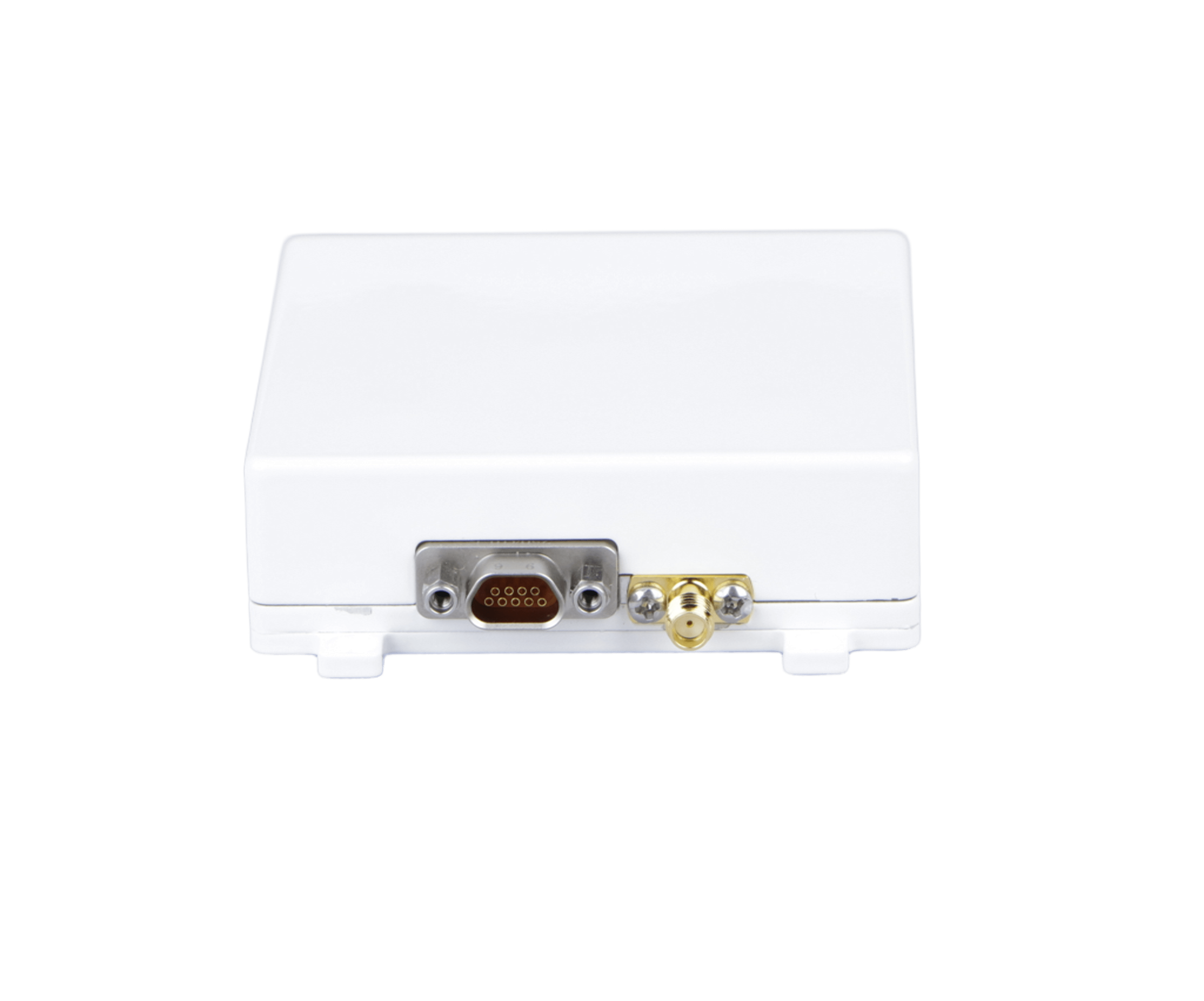

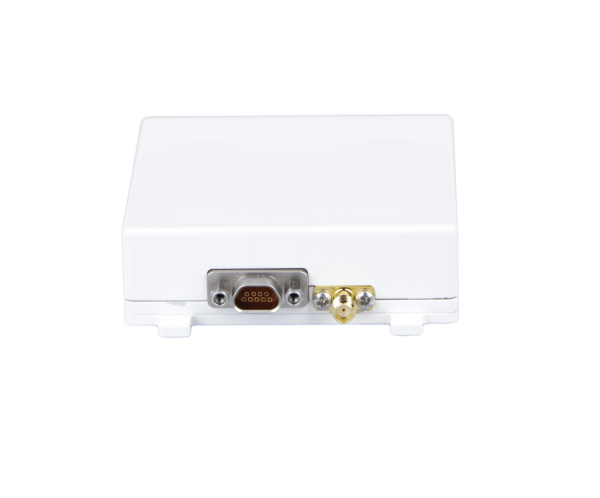

Product Description:
The ultra-small four-element anti-jamming antenna measures only 65mm*65mm*19.5mm, supports the four-element broadband anti-jaming function of the Beidou-3 B1/L1 frequency point, and can reject various broadband and narrowband rejection jamming such as harmonics, sweep frequency, pulse, frequency modulation, phase modulation, etc. In the B1/L1 frequency band, the antenna integrates an active anti-jamming receiving antenna, which includes core components such as anti-jamming RF chip, intermediate frequency filter, ADC, anti-jamming digital baseband processing, and DAC.
Main Function:
1. Receive satellite signals from GPS-L1 and BDS-B1.
2. It can reject various types of broadband and narrowband jamming such as harmonics, sweep frequency, pulse, frequency modulation, amplitude modulation, phase modulation, etc. for GPS-L1 and BDS-B1 frequency bands.
3. With software online upgrade function.
Electrical Specifications
Receiving Frequency: 1575.42±1.023MHz & 1561.098±2.046 MHz
Anti-Jam Frequency Point: 1575.42±1.023MHz & 1561.098±2.046 MHz
Anti-Jam Ability: Single jam ≥ 85dB, three jam ≥ 75dB
Signal Output Power: -70±5 dBm
Input Voltage: 4.5~5.5 VDC
Power Consumption: ≤6.5W
Interface Definition
The connector model of the digital communication control interface is J30J-9ZK, which provides power supply and serial communication. The interface definition is as follows:
No. | Name | Description |
1 | VCC IN | 4.5～5.5V DC Power Supply (Typical value: 5VDC) |
2 | VCC IN | 4.5～5.5V DC Power Supply (Typical value: 5VDC) |
3 | GND | GND |
4 | GND | GND |
5 | RS232A_RXD | Serial port A input |
6 | RS232A_TXD | Serial port A output |
7 | RS232B_RXD | Serial port B input |
8 | RS232B_TXD | Serial port B output |
9 | RS232_GND | Seial port GND |
Mechanical Specifications
Output Connector: SMA-K (RF)/J30J-9ZK (Data interface)
Dimension: 65×65×19.5 mm
Weight: ≤200g
Operating Temperature: -40℃~60℃
Storage Temperature: -55℃~75℃
Intergration Instruction
When integrating the ultra-small four-element anti-jamming antenna and connecting the corresponding interfaces of the ultra-small four-element anti-jamming antenna to the power interface module, please note the following:
1. The ultra-small four-element anti-jamming antenna module has high overall power consumption, so pay attention to the power supply current design during integration.
The ultra-small four-element anti-jamming antenna module has high overall power consumption, so pay attention to the heat dissipation design during integration.

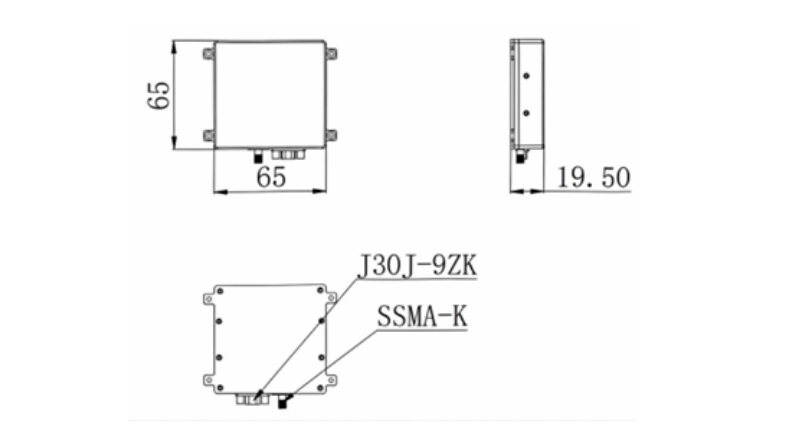

Diagram
