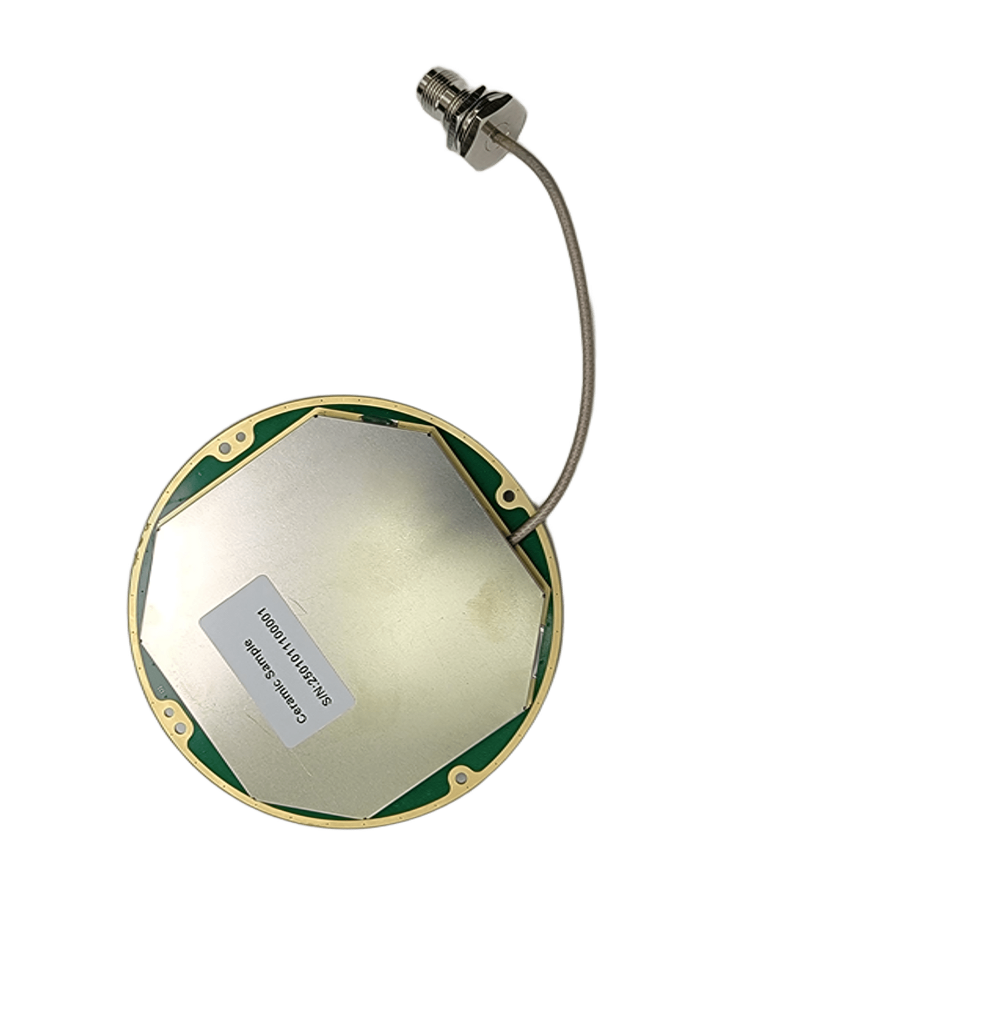

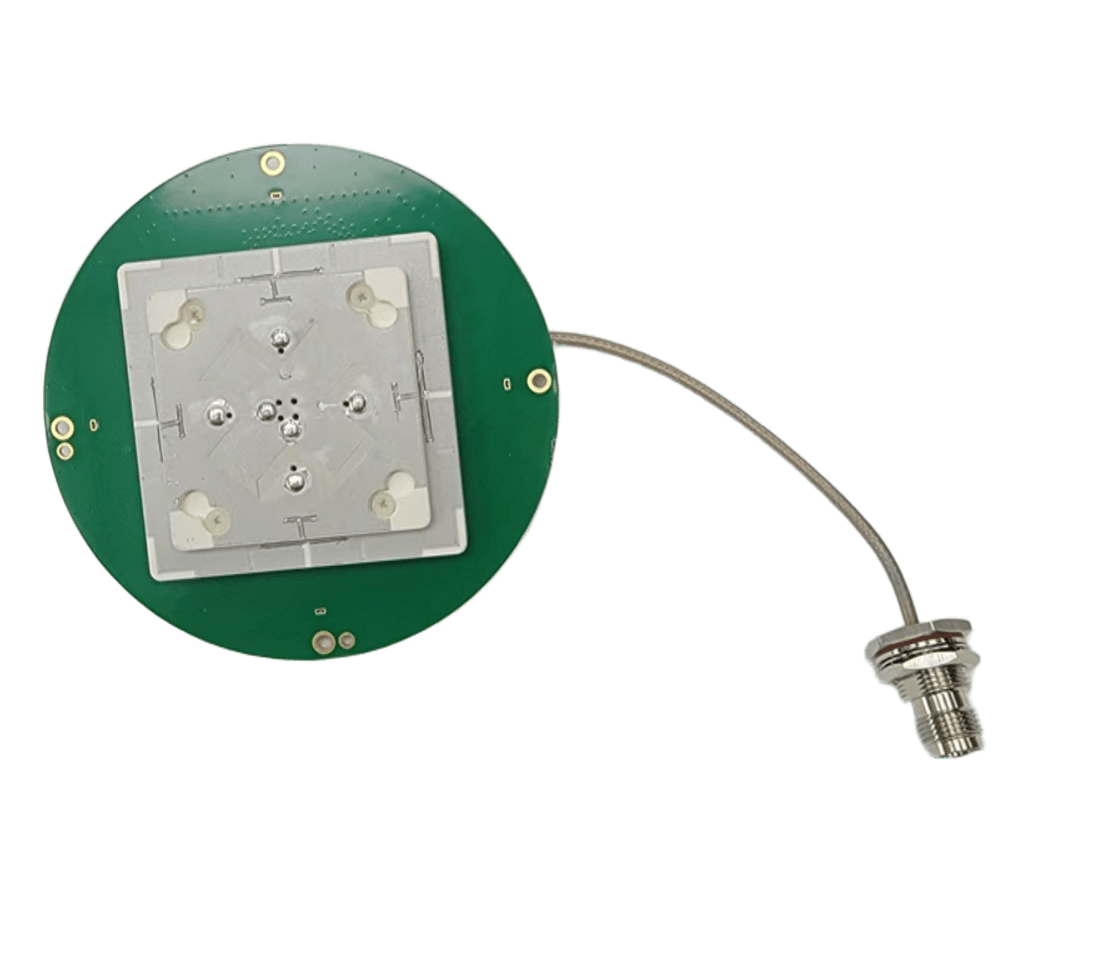

Key Features:
Ø Supports the full frequency band of GNSS navigation system and S-band, meeting the multi-system compatibility requirements of current navigation equipment.
Ø The antenna has high gain, wide beam, and good reception at low elevation angles.
Ø Pre-filter design can effectively prevent out-of-band jamming.
Ø Built-in voltage regulator circuit, can work normally in a wide input voltage range.
Electrical Specifications
Frequency Range: F1: 1559～1610MHz
F2: 1164～1300MHz
S: 2483～2501MHz
Gain: ≥+4.0 dBi (Peak gain)
Polarization: RHCP
Axial Ratio: ≤ 3dB
VSWR: ＜2.0
LNA Specifications
LNA Gain: ≥30 dB
VSWR: ≤2.0
Noise Figure: ≤2.5 dB
Gain Flatness: ±2 dB
Anti-Burn Power: ≥1W
Voltage: 2.5~5 VDC
Working Current: ≤60mA
Mechanical Specifications
Connector: TNC-K
Dimension: Φ100×19.2mm
Weight: ＜220g
Operating Temperature: -40℃～+70℃
Storage Temperature: -40℃～+70℃

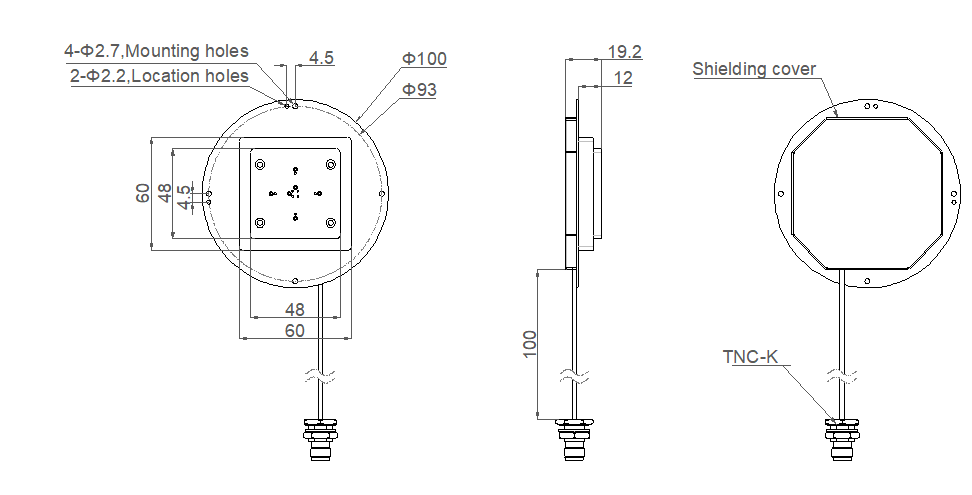

Diagram
