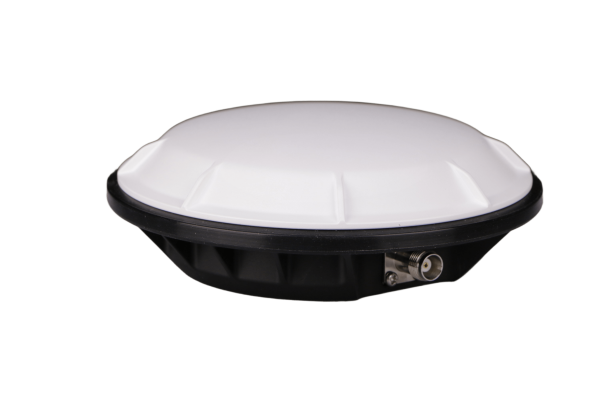

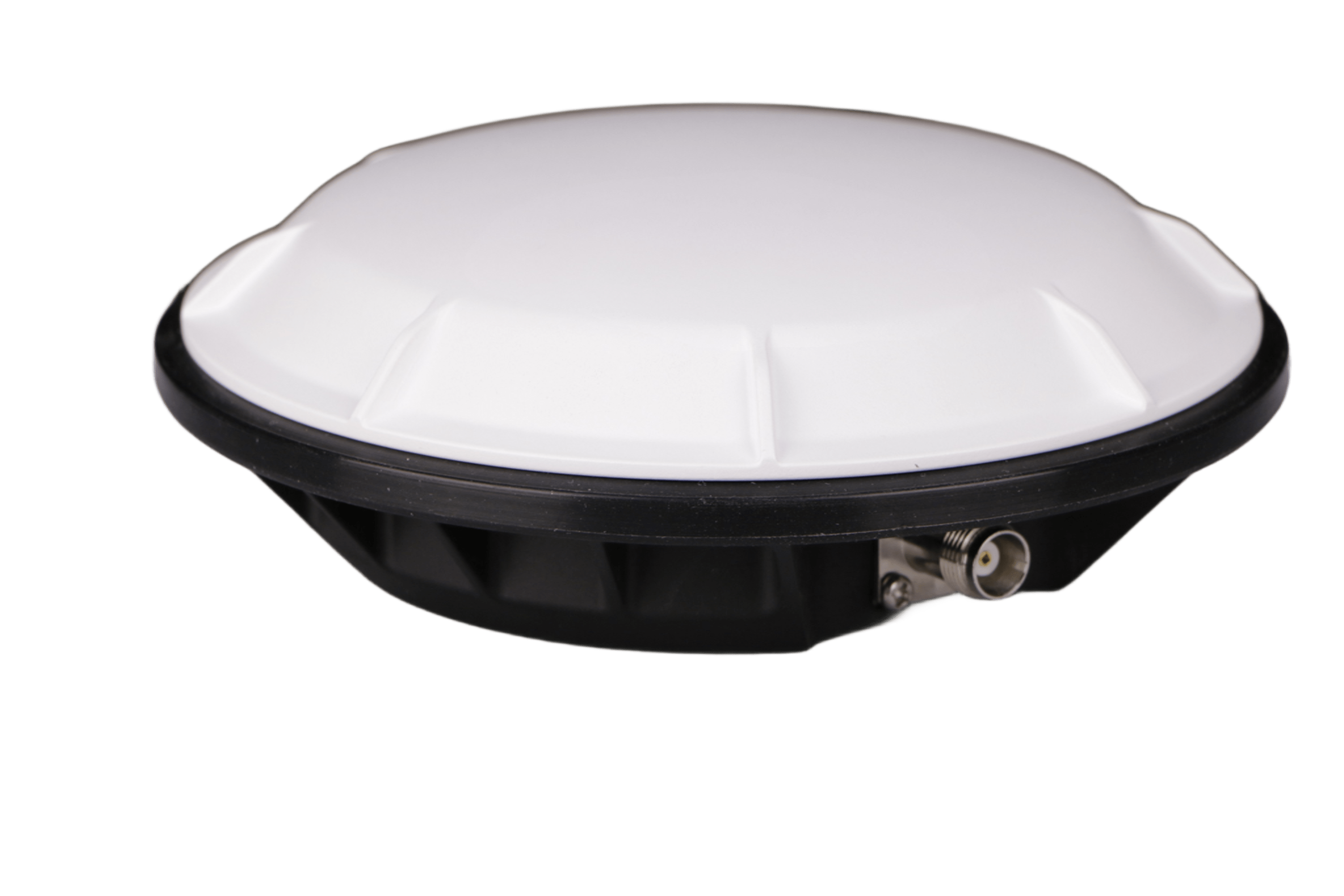

GNSS Ruggedized Survey Antenna

Description:

Consult

Product Description

This antenna covers satellite navigation signals in frequency bands such as BDS B1/B2/B3, GPS L1/L2/L5, GLONASS L1/L2/L3, GALILEO E1/E5a/E5b/E6, QZSS L1/L2/L3/L6, SBAS L1/L5, IRNSS L5, and L-Band, and is compatible with multiple system receivers at domestic and overseas. It has a stable and reliable structure, is resistant to vibration and shock, and has excellent durability. It also adopts a waterproof design, which supports high-precision positioning services in complex outdoor environments.



Key Feature

Ø The multi-feed point technology has a more accurate phase value and reduces the impact of the antenna on the survey error.

Ø Supports BDS, GPS, GLONASS, GALILEO, QZSS, SBAS, IRNSS and L-Band multi-system compatibility.

Ø The stable structure design has strong anti-vibration and shock resistance, and is suitable for various harsh environments. It is the preferred choice for most construction machinery high-precision operations..

Ø Waterproof sealing design to support various outdoor environments.


Electrical Specifications (Passive Antenna)

Frequency Range: 1164 MHz~1300 MHz & 1525 MHz~1610 MHz

Gain: ≥5.5 dBi (Elevation angle 90°)

Polarization: RHCP

Axial Ratio: ≤3 dB (Elevation angle 90°)

VSWR: ≤1.5

Directional Pattern Shape: Horizontal omnidirectional, vertical hemispherical beam


LNA Specifications

Frequency Range: 1164 MHz~1300 MHz & 1525 MHz~1610 MHz

LNA Gain: 40±2 dB

VSWR: ≤2.0

Noise Figure: ≤2.0 dB

Gain Flatness: ±2 dB

In Band Group Delay Fluctuation: ≤5 ns

EMC (RF Input Static): Meets IEC6 1000-4-2 (ESD) standard: ±15kV air discharge; ±8kV contact discharge

Voltage: 3.3~12.0 VDC

Working Current: ≤45mA


Mechanical Specifications

Output Connector: TNC-K

Dimensions: Φ147×53.5mm

Weight: <650g

Operating Temperature: -45℃~+85℃

Storage Temperature: -55℃~+85℃

Waterproof Level: IP67

Vibration: 10-2000Hz,RMS=9.8g

Shock: 75g, 6ms, ±X, ±Y, ±Z 3 times each, 18 times in total

Humidity: 95%

Salt Spray: 96H, neutral salt spray

Installation

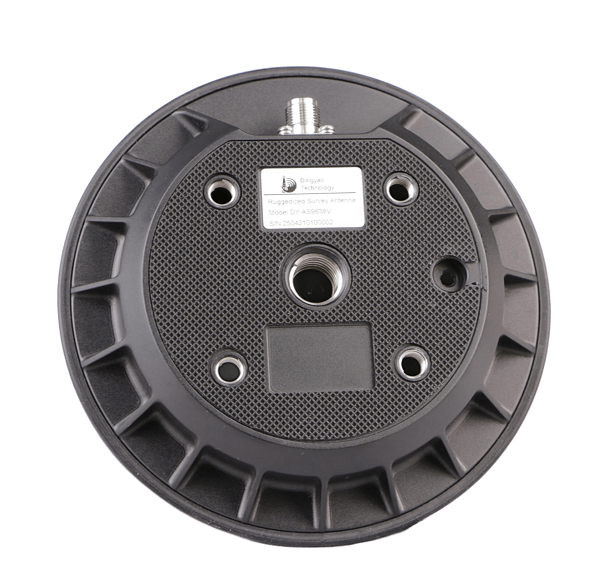

Pole installation: Threaded hole at the bottom of the housing 5/8"-11UNC, 16mm deep

Screw installation: 4×M8 threaded holes at the bottom of the housing, depth 14mm

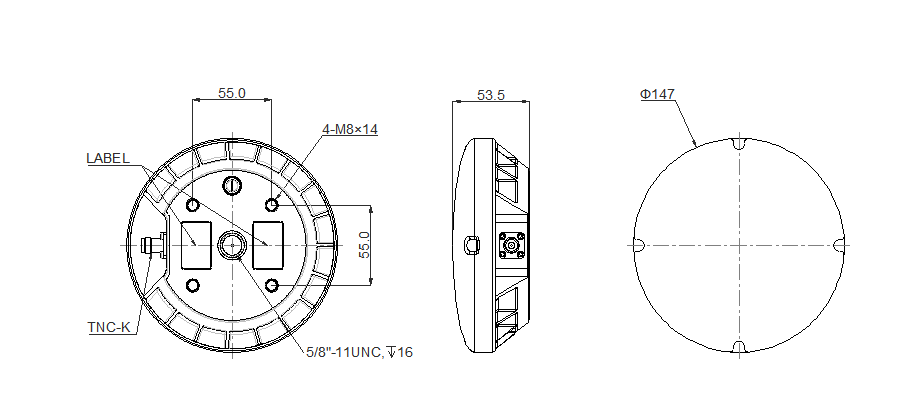

Diagram
