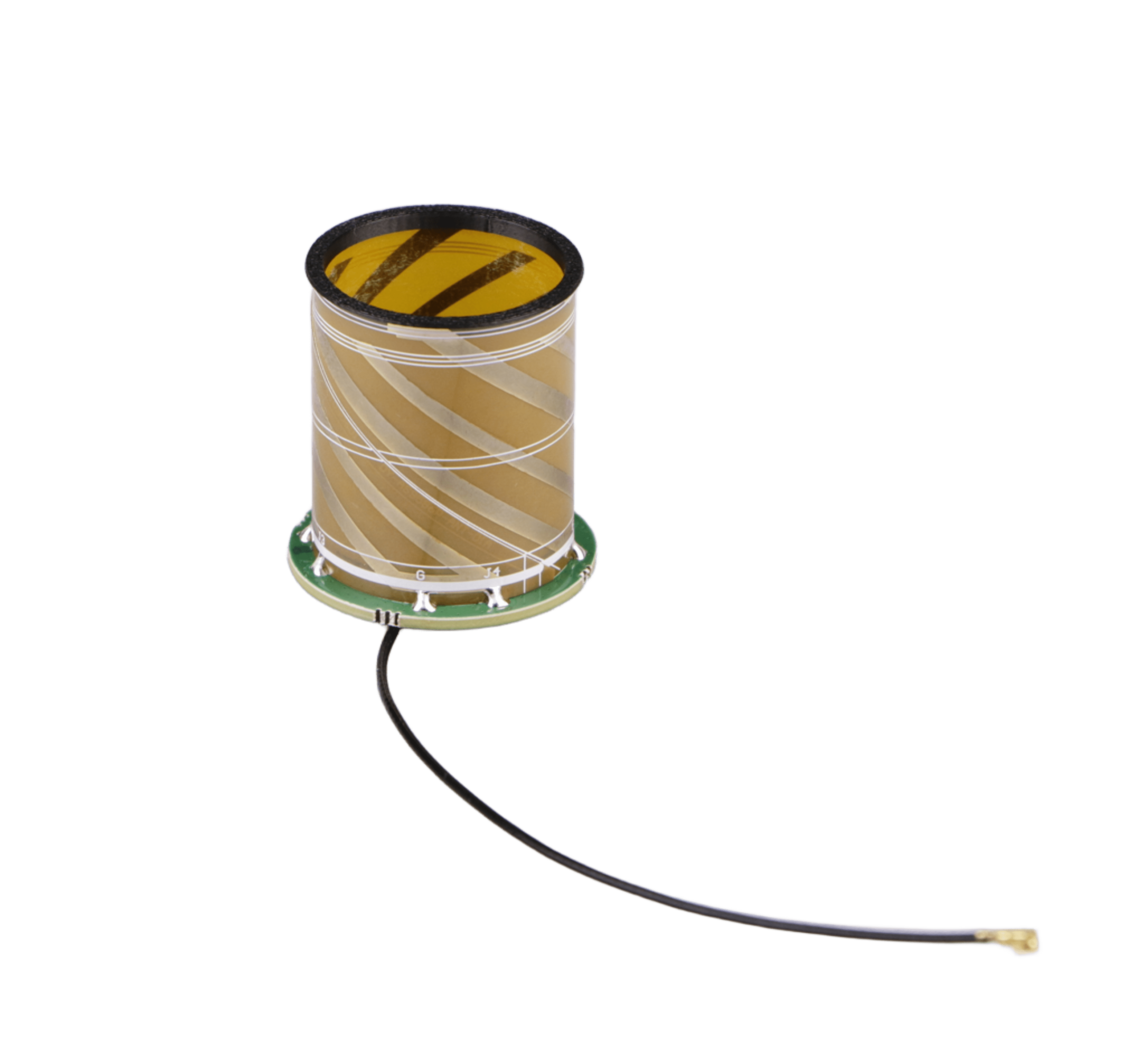

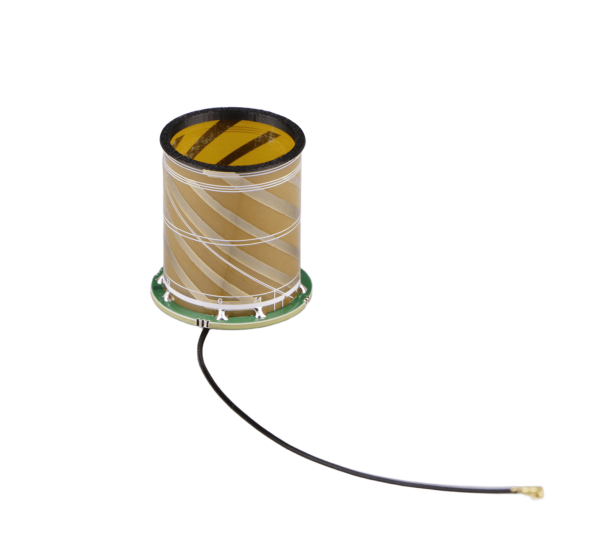

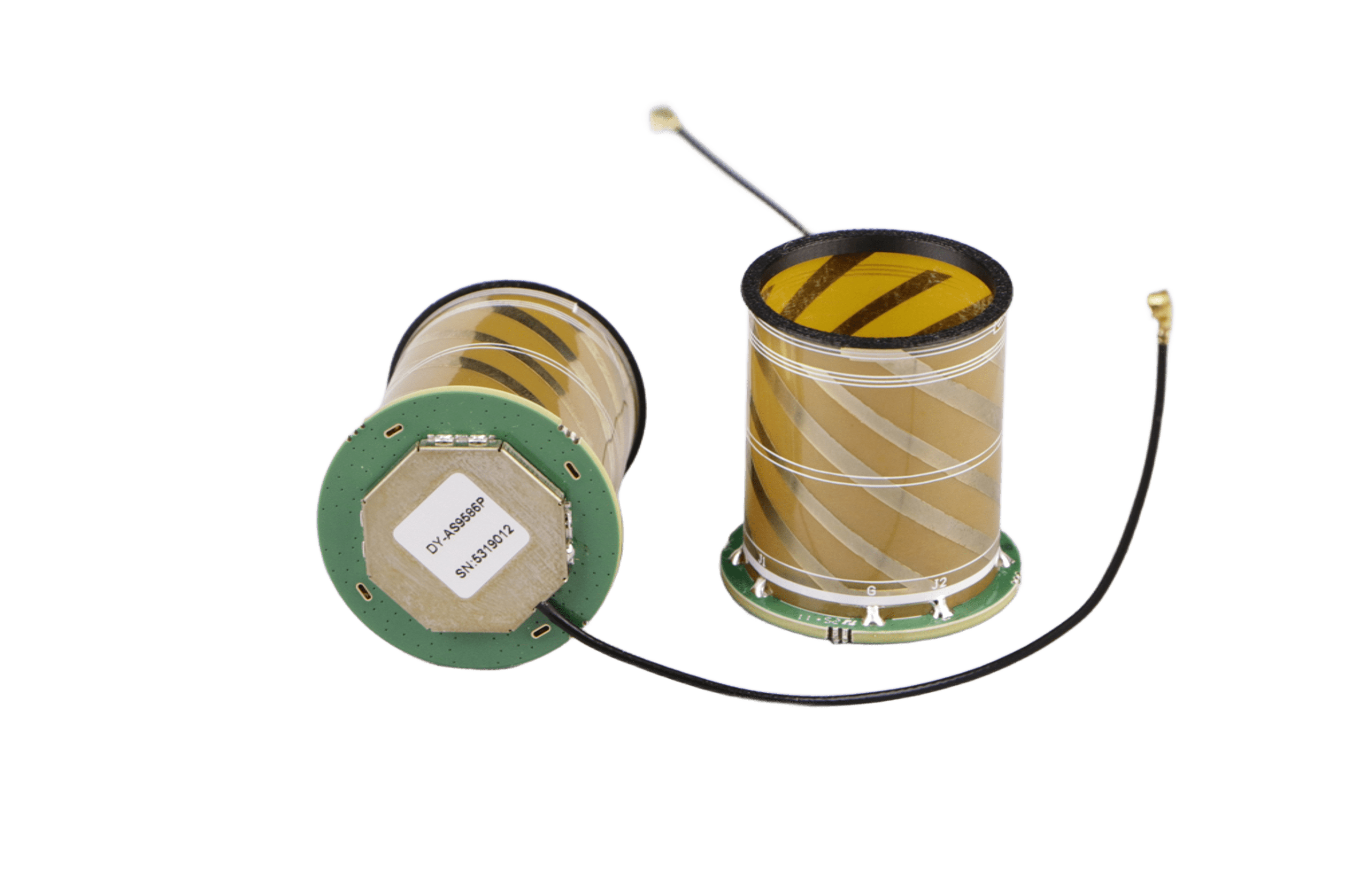

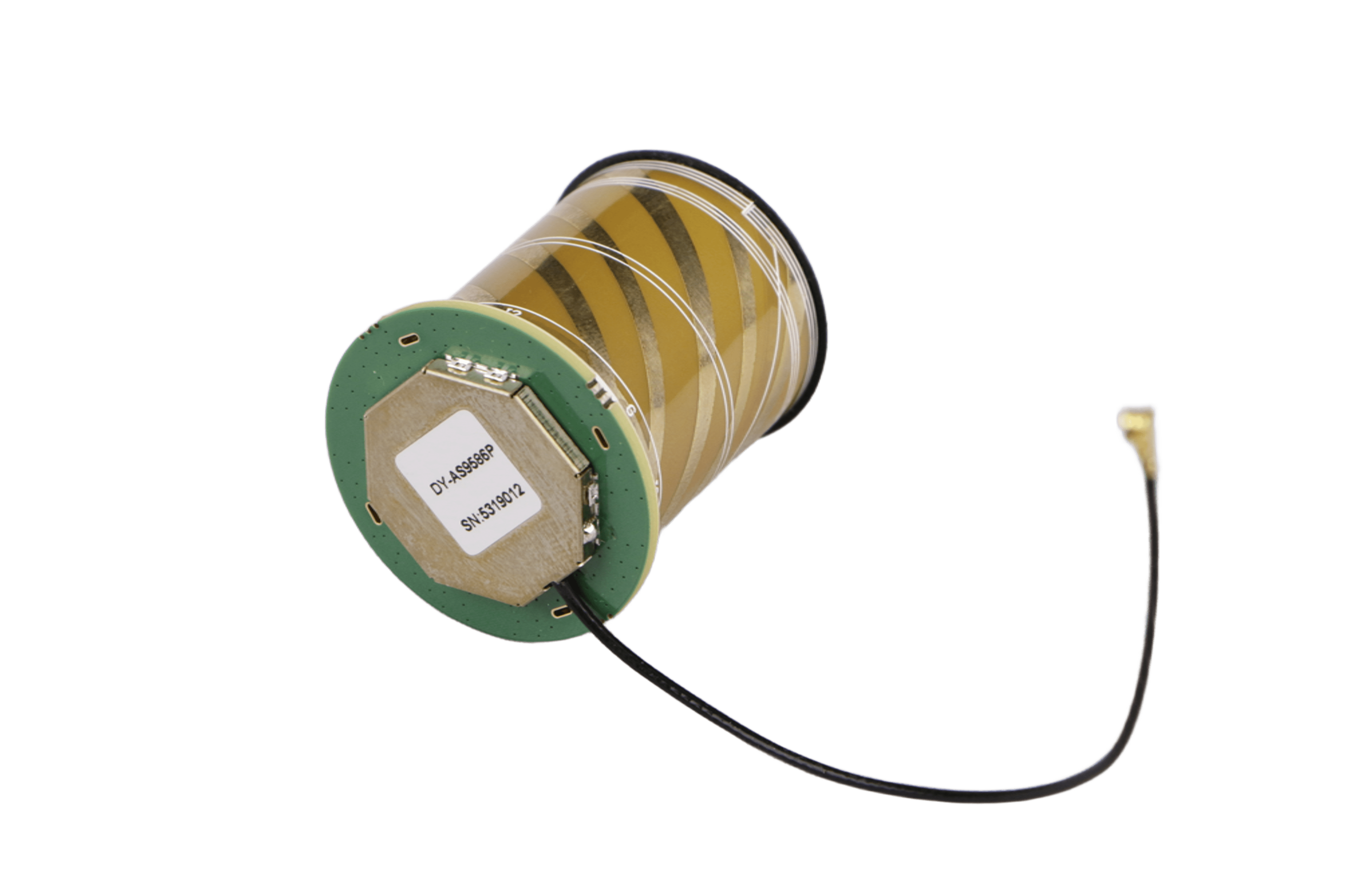

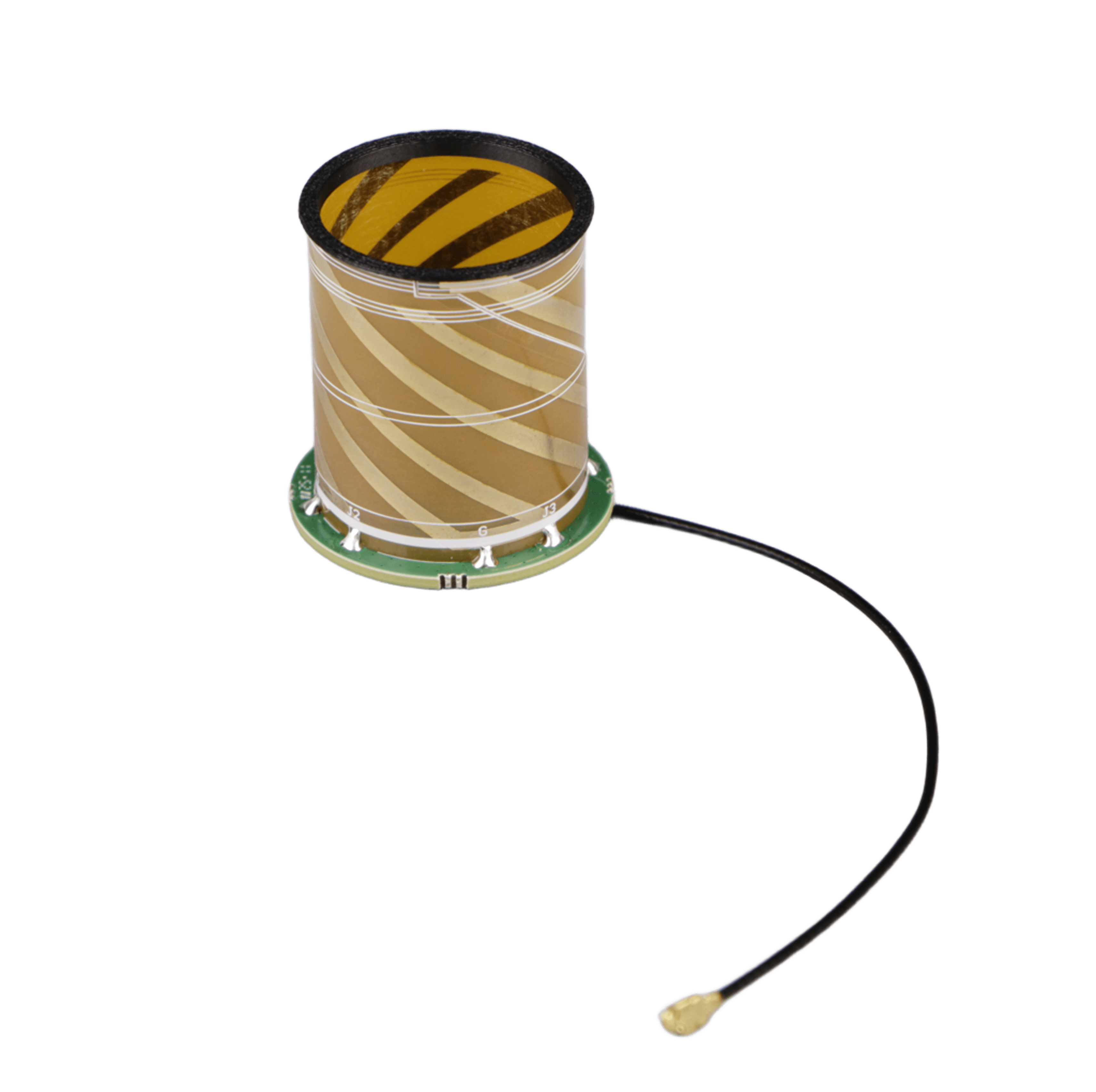

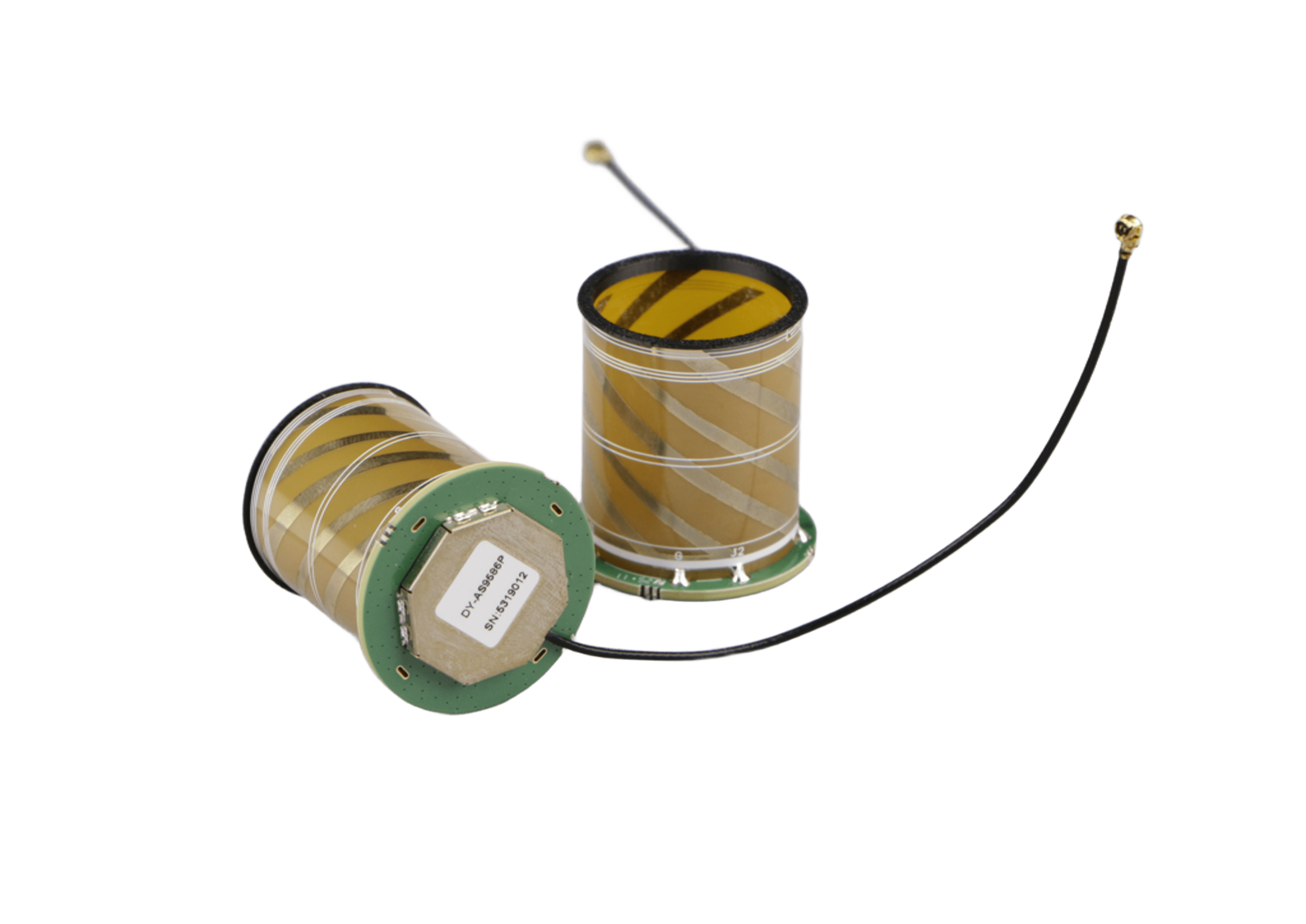

Key Features:
Ø Adopts multi-arm spiral technology that ensuring the RHCP and phase center performance and reduces the impact of survey errors.
Ø The antenna unit has the characteristics of high gain and small gain roll-off, and has good reception effect on satellite signals at low elevation angles.
Ø Sophisticated low-noise, high-gain amplification and excellent out-of-band rejection.
Ø Small size, light weight, easy to carry and install.
Electrical Specifications
Passive Antenna
Frequency Range: 1164MHz~1278MHz&1525MHz~1615MHz
Polarization: RHCP
Antenna Gain: ≥2.5dBi (Peak Gain)
Axial Ratio: ≤1.5dB (@zenith)
Azimuth Coverage: 360°
Impedance: 50Ω
LNA Specifications
LNA Gain: 35±3.0dB (Typ. @25°C)
Group Delay Fluctuation: ≤5ns
Output VSWR: ≤1.8:1 typ. 2.0:1max
Noise Figure: ≤2.0 dB@25°C , Typ. (Pre-filter)
Voltage: 3.3~12V DC
Working Current: ≤45mA
Mechanical Specifications
Dimension: Φ30×33.7mm
Connector: IPEX (first generation), Φ1.13, wire length L=1000mm±2mm
Weight: 7.5g±2g
Operating Temperature: -40℃~+80℃
Storage Temperature: -45℃~+85 ℃
Diagram
