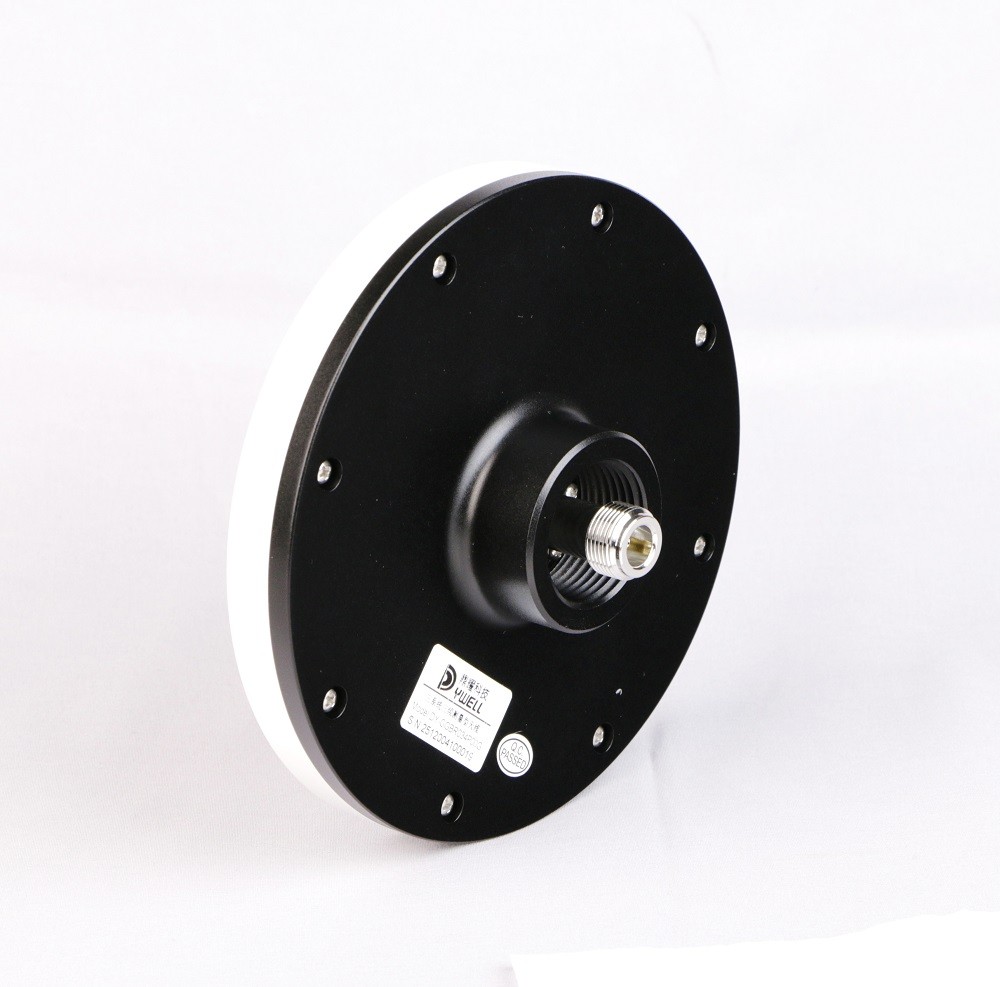

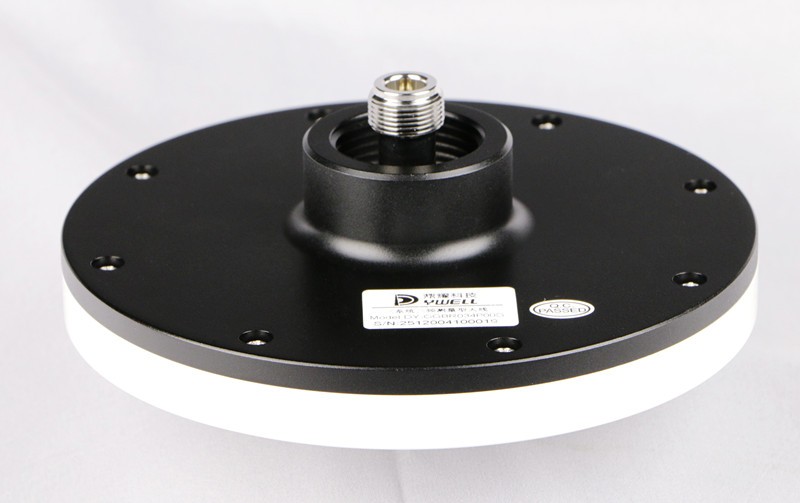

Key Feature:
Ø It has a more accurate phase value and a smaller measurement error.
Ø It has broad compatibility and can receive multiple systems and multiple frequency bands.
Ø With a metal base, the structure is robust, reliable, and highly durable.
Ø Disc-shaped design, it boasts low wind resistance and is both aesthetically pleasing and reliable.
Ø Meets IP67 waterproof rating.
Ø It has good corrosion resistance and can withstand 144 hours of neutral salt spray under standard design.
Electrical Specifications
Frequency Range: 1164～1300MHz & 1525～1615MHz
Polarization: RHCP
Antenna Gain: ≥5.0 dBi (Elevation angle 90°)
Axial Ratio: ≤3dB (Elevation angle 90°)
Front-Back Ratio: ≥20dB (±60°)
Phase Center Error: <2mm
LNA Specifications
LNA Gain: 39±2 dB
VSWR: ≤1.8
Noise Figure: ≤2.0 dB
Gain Flatness: ±1.5 dB
Out-of-Band Rejection: ≥45dBc @ F0±200 MHz
In-Band Froup Delay Fluctuation: ≤5 ns
Voltage: 3.3~12V DC
Working Current: ≤50 mA
Mechanical Specifications
Dimension: Φ146×58mm
Connector: N-K
Weight: ≤600g
Operating Temperature: -40℃~+70 ℃
Storage Temperature: -45℃~+85 ℃
Waterproof Rating: IP67
Usage Environment: Marine enviroment
Diagram
